Yixing Mechanical Bar Screen | Advanced Wastewater Rake for Coarse Water Treatment
Company Overview
Longdai Co., Ltd. is a leading supplier of environmental processing equipment for the petrochemical industry, based in Yixing, Jiangsu Province, China. We specialize in integrated solutions encompassing independent R&D, design, general contracting, manufacturing of environmental protection equipment, and supply of related materials.
Product Introduction

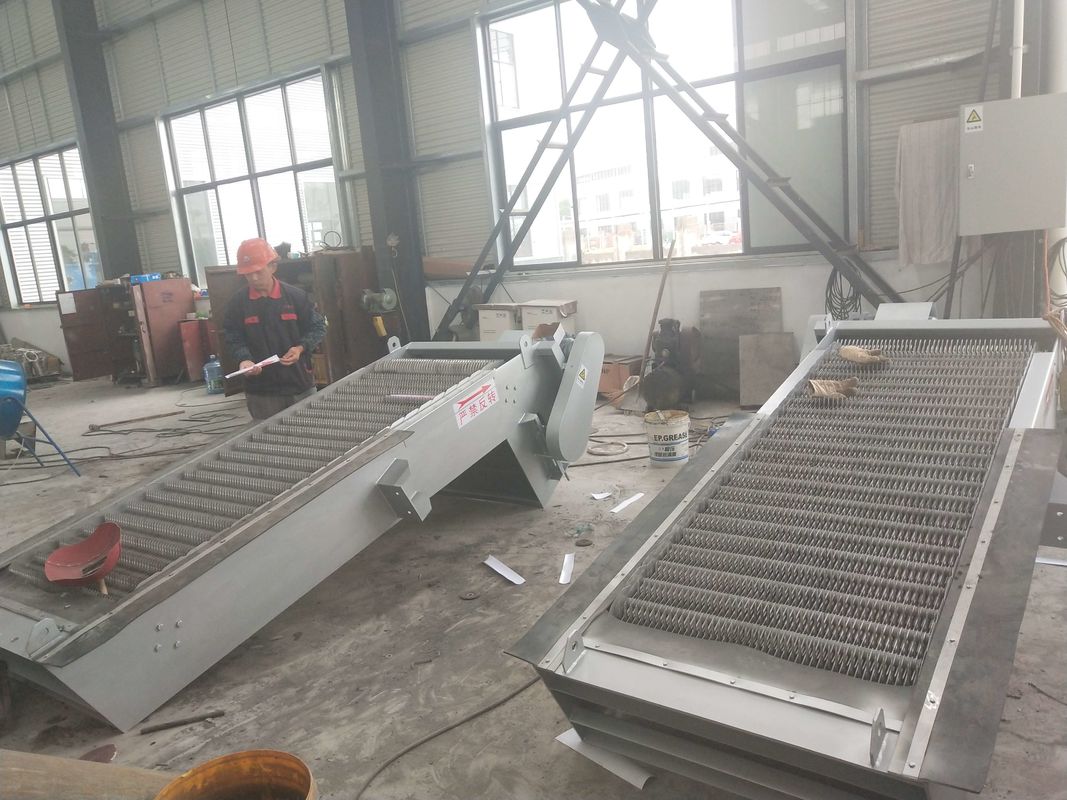

Our Mechanical Bar Screen is a high-efficiency filtration system designed for continuous interception and removal of solid debris in wastewater. It excels at capturing flat solids, weeds, fruit shells, and particularly hair and fibrous contaminants that are challenging for traditional fine screens. This significantly reduces the burden on downstream treatment processes.
Structure & Working Principle
Wastewater enters centrally from one side of the vertical fine screen unit. It is filtered through perforated grids on both sides, while intercepted solids are lifted upward by the rotating screen mechanism.
A high-pressure washing system cleans the screen and flushes residues into the integrated sludge collection hopper.
The collected sludge is conveyed to subsequent treatment stages, and the cleaned screen returns to the next operational cycle.
Main components include:
Main frame
Rotating screen and drive chain
Drive unit
Slash collection hopper
Backwash system
Control system
Technical Specifications
| Parameter | Description/Specification |
|---|---|
| Operation | Fully Automatic |
| Width & Depth | Customizable |
| Power | 0.55 - 3.0 kW |
| Motor Options | Domestic or Imported Brands |
| Electrical Components | Schneider / Omron / Siemens |
| Warranty | 1 Year |
| After-Sales Service | On-site Engineer Support Available |
Applications
Ideal for municipal and industrial wastewater treatment plants requiring efficient removal of coarse and fibrous solids, including:
Food processing
Textile and tannery wastewater
Agricultural and aquaculture effluent
Municipal sewage pumping and pretreatment stations
Key Features
High Efficiency: Large filtering surface with excellent solids retention.
Compact Design: Vertical installation saves space.
Stable Operation: Anti-overload design ensures smooth performance.
Fibrous Waste Handling: Effectively avoids clogging from hair and fibers.
Advanced Cleaning: Combines rotating brushes and flushing for thorough residue removal.
Durable Screen: Low friction, wear-resistant, anti-clogging, and easy to clean.
Fully Automatic: Programmable controls via time or liquid level difference.
Optimized for: Industrial wastewater pretreatment, municipal sewage systems, and applications requiring reliable coarse screening with minimal maintenance.
Keyword Emphasis: Yixing bar screen, mechanical rake screen, coarse wastewater treatment, fibrous waste removal.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
