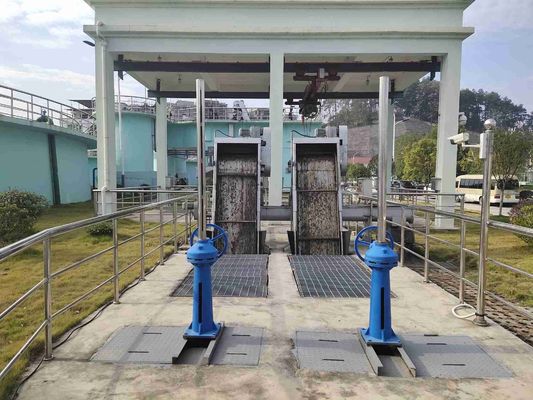

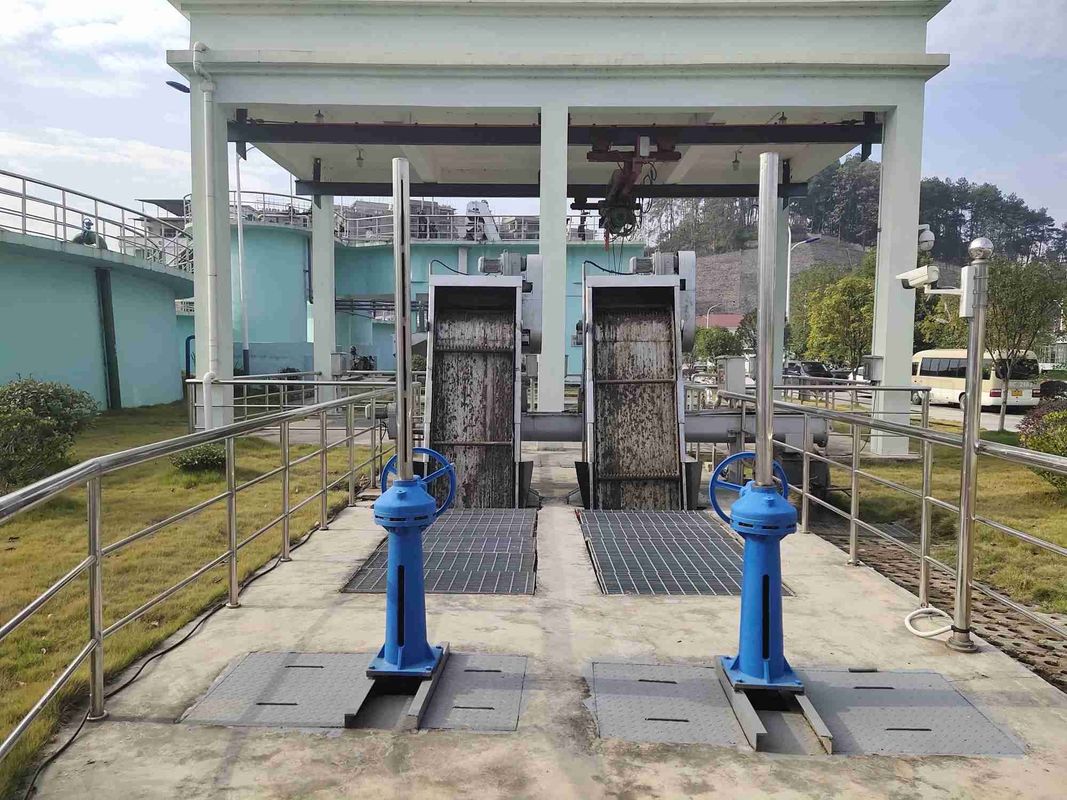

CF Series Rotary Mechanical Bar Screen: Automated Solid-Liquid Separation for Advanced Water Treatment
To Our Valued Customers:
We specialize in the manufacturing of a comprehensive range of wastewater treatment equipment. Should you have any inquiries, please do not hesitate to contact us. Thank you.
The CF Series Rotary Solid-Liquid Separator represents advanced solid-liquid separation technology designed for a wide spectrum of water treatment applications. It is widely employed in:
Municipal sewage treatment plants
Residential community sewage pretreatment systems
Municipal storm and sewage pumping stations
Water purification plants
Power plant cooling water systems
Industrial wastewater treatment across sectors including textiles, printing and dyeing, food processing, aquaculture, paper manufacturing, brewing, slaughterhouses, and tannery operations.
| Model / Parameters | CF-500 | CF-600 | CF-700 | CF-800 | CF-900 | CF-1000 | CF-1100 | CF-1200 | CF-1300 | CF-1400 | CF-1500 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Device Width B (mm) | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 |
| Channel Width B1 (mm) | B + 100 | ||||||||||
| Effective Gate Width B2 (mm) | B - 157 | ||||||||||
| Foundation Bolt Spacing B3 (mm) | B + 200 | ||||||||||
| Total Equipment Width B4 (mm) | B + 350 | ||||||||||
| Rake Tooth Clearance b (mm) | t = 100: 1 ≤ b ≤ 10; t = 150: 10 < b ≤ 50 | ||||||||||
| Installation Angle α (°) | 60~85 | ||||||||||
| Channel Depth H (mm) | 800~12000 | ||||||||||
| Discharge to Platform Height H1 (mm) | 600~1200 | ||||||||||
| Total Equipment Height H2 (mm) | H + H1 + 1500 | ||||||||||
| Rear Box Frame Height H3 (mm) | t = 100: ≈1000; t = 150: ≈1100 | ||||||||||
| Rake Tooth Speed v (m/min) | ≈2.1 | ||||||||||
| Motor Power N (kW) | 0.55~1.1 | 0.75~1.5 | 1.1~2.2 | 1.5~3.0 | |||||||
| Head Loss (mm) | ≤20 (unclogged condition) | ||||||||||
| Civil Engineering Load | P1 (KN): 20, 25; P2 (KN): 8, 10; ΔP (KN): 1.5, 2.0 |
The CF Series Rotary Solid-Liquid Separator employs a rotating mechanism with uniquely designed blade-type rakes mounted on a horizontal shaft. These rakes are arranged in a specific sequence and quantity to form a continuous rake chain.
Installed at the inlet of pumping stations or water treatment systems, the equipment operates as follows:
The drive unit moves the rake chain in an upward direction, capturing solid wastes from the wastewater flow.
Liquid passes through the gaps between the bars.
Upon reaching the top, the rake chain reverses direction, and solids are discharged by gravity as the rakes rotate downward.
The process repeats continuously, ensuring efficient and automated solid-liquid separation.
Efficient Drive System: Utilizes cycloidal pinwheel or helical gear reduction motors for quiet, compact, and stable operation.
Robust Construction: Integral frame design ensures high rigidity, easy installation, and minimal maintenance.
Flexible Rake Tooth Options: Available in two pitch specifications—t = 100mm and t = 150mm—to accommodate varying solid waste sizes.
User-Friendly Operation: Supports both local and remote control for seamless integration into automated systems.
Overload Protection: Equipped with mechanical shear pins and overcurrent protection to safeguard against unexpected overloads.
Enhanced Durability: For units with a width of 1500mm, a parallel connection design is adopted to ensure structural integrity and operational reliability.
Outline and Installation Chart
Technical Requirements
1. Frame 2. manhole cover 3.hauling chain 4. Guide Device 5. Motor Shield 6. Drive Device 7. Rake Teeth 8. baffle(left and right) 9. baffle(top and bottom)
